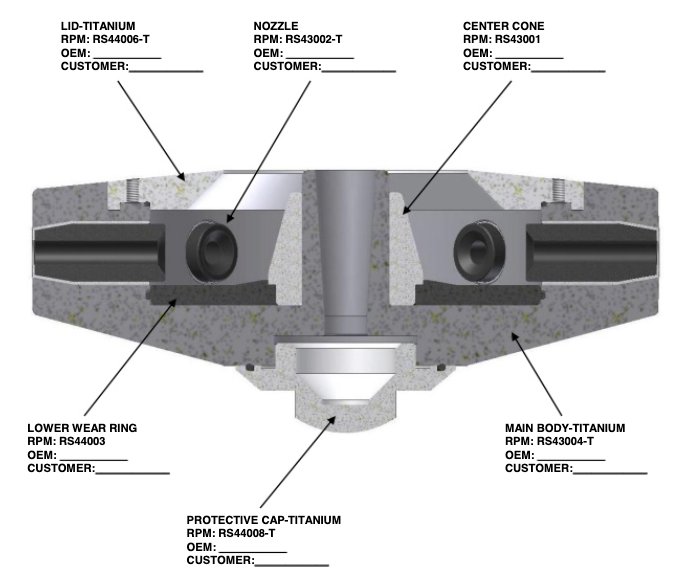

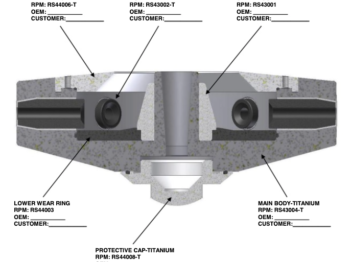

Wheel Components (Cross Section)

250 x 70 Atomizer Wheel Components Cross Section

250mm x 70mm Atomizer Wheel Components

  • Titanium Lid – RS44006-T
Titanium Lid RS44006-T
  • Titanium Main Body – RS43004-T
Titanium Main Body RS43004-T
  • Lower Wear Ring – RS44003
Lower Wear Ring RS44003
  • Protective Cap – RS44008-T
Protective Cap RS44008-T
  • Center Cone – RS43001
Center Cone - RS43001
  • Nozzle – RS43002-T
Nozzle RS43002-t

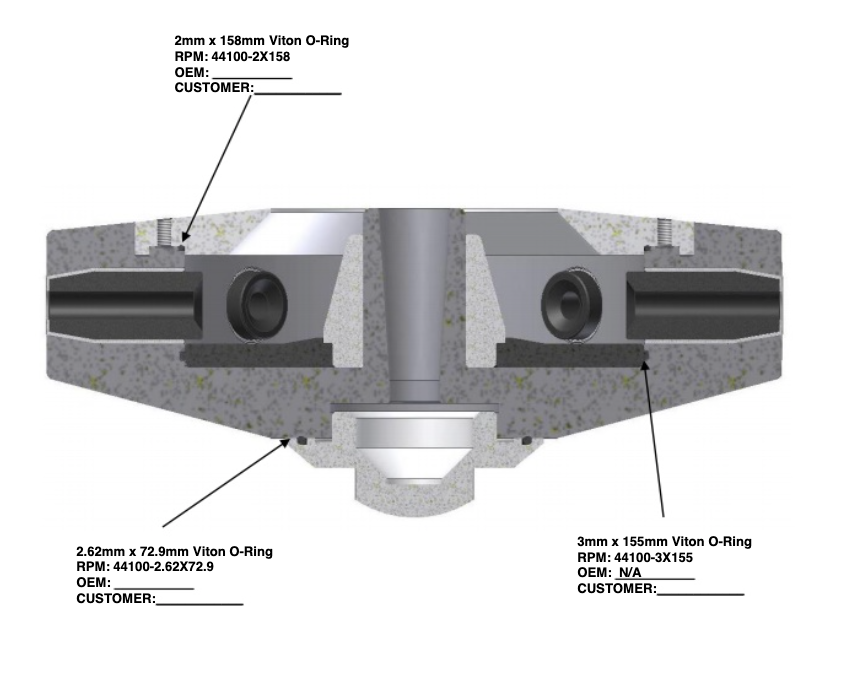

O-Ring Detail (Cross Section)

  • Main Body (2mm x 158mm Viton O-Ring) – 44100-2×158
  • Main Body (3mm x 155mm Viton O-Ring) – 44100-3×155
  • Protective Cap (2.62mm x 72.9mm Viton O-Ring) 44100-2×79
250mmx70mm Atomizer 0-ring detail

Drive Components

  • Atomizer Spindle – RS43000
Atomizer Spindle rs43000
  • Guide Bearing – RS44400
Guide Bearing rs44400

Fasteners For (1) Wheel

  • Main Body (6mm x 16mm SHCS-Titanium)
  • Main Body (6mm Titanium Lock Washer)
  • Center Cone (5mm x 20mm Titanium SHCS)
  • Center Cone (5mm x 20mm Titanium SHCS)
  • Lid (6mm x 10mm Titanium Screw Set)
  • Main Body (6mm x 10mm Titanium Screw Set)
